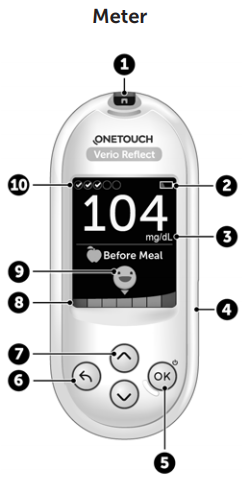

Getting To Know Your OneTouch Verio Reflect® Blood Glucose Monitoring System:
1. Test strip port: Insert test strip here to turn meter on
2. Battery icon: Appears only when batteries are low
3. mg/dL is the pre-set unit of measure and cannot be changed*
-
-
- WARNING: *Confirm that the unit of measure mg/dL is displayed. If your display shows mmol/L rather than mg/dL, stop using the meter and contact OneTouch® Customer Care.
4. Micro USB data port: Connect to download to a computer
5. OK button:
- Turns meter on/off (press and hold)
- Confirms menu selections (press and release)
6. Back button:
- Go back to the previous screen (press and release)
- May be used to change a Meal tag or add an Event tag
7. Up and down buttons:
- Highlight selection (press and release)
- Increase scrolling speed (press and hold)
8. Color Bar
9. Range Indicator icon
10. Test Tracker icons
